SMD Tactile Switch, SPST-NO, 50mA, 12VDC. Features a 2.4N operating force, 0.25mm travel, and silver-plated contacts. Non-illuminated and illuminated options available. Durable with 30,000 cycle electrical and mechanical life. Compact 3.5mm x 7.2mm x 5mm (W x D x H) surface-mount design with J-bend termination. RoHS compliant.
PackageSMD/SMT
Storage3.5mm
Current Rating50mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Panasonic EVQ-5PN05K technical specifications.
General
| Actuator Color | Black |
| Actuator Length | 1.5mm |
| Actuator Type | Standard |
| Package/Case | SMD/SMT |
| Contact Current Rating | 50mA |
| Contact Plating | Silver |
| Current Rating | 50mA |
| Depth | 7.2mm |
| Electrical Life | 30000Cycles |
| Height | 5mm |
| Illumination Type | Non-Illuminated, Illuminated |
| Lead Free | Lead Free |
| Length | 6mm |
| Max Current Rating | 50mA |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -30°C |
| Max Voltage Rating (DC) | 12V |
| Mechanical Life | 30000Cycles |
| Mount | Surface Mount |
| Operating Force | 2.4N |
| Orientation | Straight |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | EVQ5PN |
| Size | 3.5mm |
| Switch Function | Off-Mom |
| Switch Travel | 0.25mm |
| Termination | J-Bend |
| Throw Configuration | SPST |
| DC Rated Voltage | 12V |
| Width | 3.5mm |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic EVQ-5PN05K Datasheet
Download the complete datasheet for Panasonic EVQ-5PN05K to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

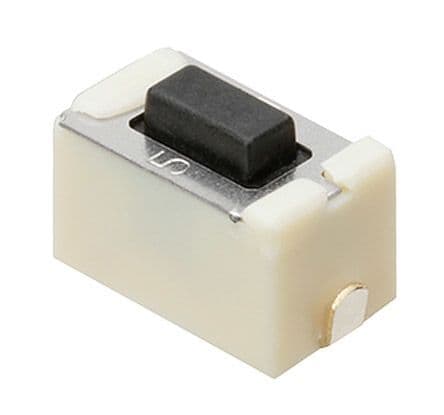

Product Images
