Technical Specifications
Panasonic EVQ-Q7GA50 technical specifications.
General
| Package/Case | SMD/SMT |
| Contact Current Rating | 20mA |
| Contact Plating | Silver |
| Current Rating | 20mA |
| Electrical Life | 1000000Cycles |
| Illumination Type | Non-Illuminated |
| Lead Free | Lead Free |
| Length | 7.7mm |
| Max Operating Temperature | 85°C |
| Mechanical Life | 1000000Cycles |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Series | EVQQ7 |
| DC Rated Voltage | 15V |
| Width | 7.7mm |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic EVQ-Q7GA50 Datasheet
Download the complete datasheet for Panasonic EVQ-Q7GA50 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

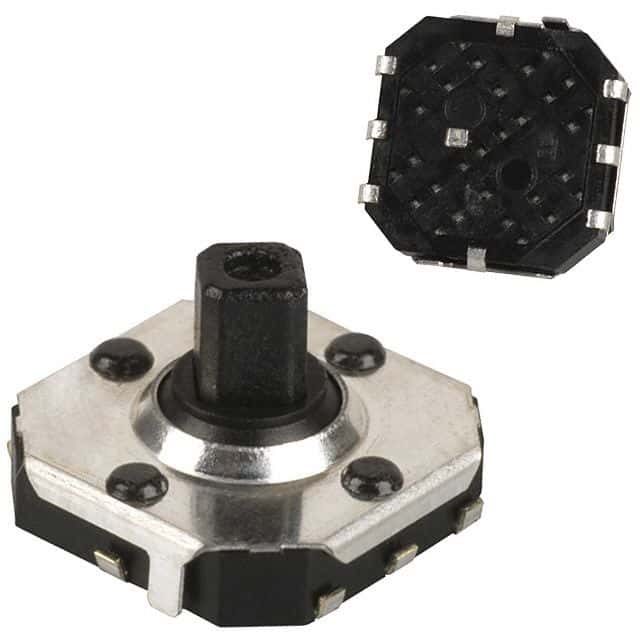

Product Images
