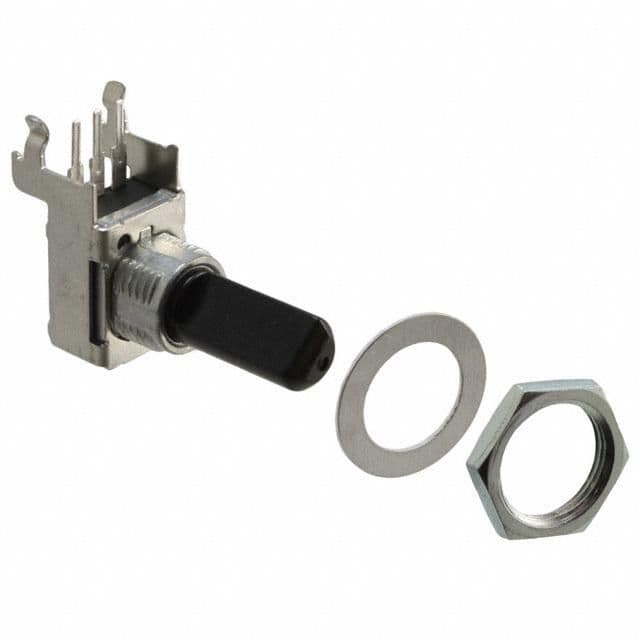

The EVU-E2JFK4B54 is a 250V linear potentiometer with a metal case and panel mount. It features a resistance of 50kR with a tolerance of 20%. The potentiometer has a maximum power dissipation of 50mW and is lead free. It is available in a bulk packaging quantity of 2000 units.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Panasonic EVU-E2JFK4B54 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Actuator Diameter | 0.236inch |
| Actuator Length | 0.689inch |
| Package/Case | Metal |
| Lead Free | Lead Free |
| Max Power Dissipation | 50mW |
| Mount | Panel, Brackets |
| Number of Gangs | 1 |
| Number of Turns | 1 |
| Package Quantity | 2000 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| Resistance | 50kR |
| Resistance Tolerance | 20% |
| Series | EVU |
| Taper | Linear |
| Termination | Pin |
| Tolerance | 20% |
| Type | Potentiometer |
| Voltage Rating | 250V |
| DC Rated Voltage | 250V |
| RoHS | Compliant |
Download the complete datasheet for Panasonic EVU-E2JFK4B54 to view detailed technical specifications.
