Surface mount resistor array featuring four isolated 4.7kΩ thick film elements with 5% tolerance. This component is housed in a 1206 (3216 metric) package, offering a 50V voltage rating and 62.5mW power dissipation per element. Operating across a temperature range of -55°C to 125°C, it is RoHS compliant and available on tape and reel.
Package1206
Resistance4.7kR
Voltage Rating50V
MountingSurface Mount
Quick Jump:
Technical Specifications
Panasonic EXB-V8V472JV technical specifications.
General
Case Code (Imperial)
1206
Case Code (Metric)
3216
Package/Case
1206
Circuit Type
Isolated
Depth
1.6mm
Height
0.028inch
Lead Free
Lead Free
Length
3.2mm
Max Operating Temperature
125°C
Military Standard
Not
Min Operating Temperature
-55°C
Mount
Surface Mount
Number of Contacts
8
Number of Elements
4
Number of Resistors
4
Package Quantity
1
Packaging
Tape and Reel
Power Dissipation
63mW
Power Per Element
62.5mW
Radiation Hardening
No
Reach SVHC Compliant
No
Resistance
4.7kR
Resistance Tolerance
5%
RoHS Compliant
Yes
Series
EXB
Size Code
0603
Technology
THICK FILM
Terminal Pitch
0.8mm
Termination
Concave
Thickness
600um
Tolerance
5%
Voltage Rating
50V
DC Rated Voltage
100V
Width
1.6mm
Compliance
RoHS
Compliant
Datasheet
Panasonic EXB-V8V472JV Datasheet
Download the complete datasheet for Panasonic EXB-V8V472JV to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

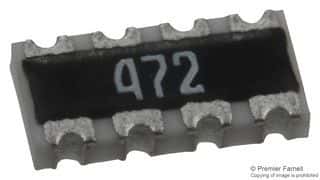

Product Images
