Surface mount RC network for EMI/RFI filtering, featuring 4 isolated circuits. Each circuit comprises a 220 Ohm resistor with 5% tolerance and a 100pF capacitor with 30% tolerance. Encased in a 1206 (3216 metric) SMD package, this component operates at 12V and has a power rating of 63mW per element. Dimensions are 3.2mm length, 1.6mm width, and 0.65mm height, with a maximum operating temperature of 85°C.
Package1206
Voltage12V
Capacitance100pF
Resistance220R
Quick Jump:
Technical Specifications
Panasonic EZA-DT43AAAJ technical specifications.
General
| Capacitance | 100pF |
| Case Code (Imperial) | 1206 |
| Case Code (Metric) | 3216 |
| Package/Case | 1206 |
| Circuit Type | Isolated |
| Construction | Flat |
| Depth | 1.6mm |
| ESD Protection | No |
| Height | 0.65mm |
| Length | 3.2mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -25°C |
| Mount | Surface Mount |
| Number of Channels | 4 |
| Number of Contacts | 10 |
| Number of Elements | 4 |
| Number of Resistors | 4 |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Power Per Element | 63mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Resistance | 220R |
| Resistance Tolerance | 5% |
| RoHS Compliant | Yes |
| Series | EZA |
| Termination | SMD/SMT |
| Thickness | 650um |
| Tolerance | 30% |
| Voltage | 12V |
| Voltage Rating | 12V |
| DC Rated Voltage | 12V |
| Width | 1.6mm |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic EZA-DT43AAAJ Datasheet
Download the complete datasheet for Panasonic EZA-DT43AAAJ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

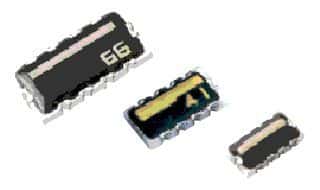

Product Images
