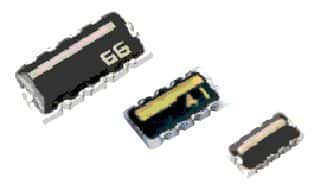

Surface mount RC network with 4 channels, each featuring a 1kΩ resistor (5% tolerance) and a 47pF capacitor (30% tolerance). This component is housed in a 1206 (3216 metric) SMD package with a maximum power rating of 63mW per element and a voltage rating of 12V. Operating temperature range is -25°C to 85°C. The flat construction measures 3.2mm in length, 1.6mm in width, and 0.65mm in height.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Panasonic EZA-DT62AAAJ datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Capacitance | 47pF |
| Case Code (Imperial) | 1206 |
| Case Code (Metric) | 3216 |
| Package/Case | 1206 |
| Construction | Flat |
| Depth | 1.6mm |
| ESD Protection | No |
| Height | 0.65mm |
| Length | 3.2mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -25°C |
| Mount | Surface Mount |
| Number of Channels | 4 |
| Number of Elements | 4 |
| Number of Resistors | 4 |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Power Per Element | 63mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Resistance | 1kR |
| Resistance Tolerance | 5% |
| RoHS Compliant | Yes |
| Series | EZADT |
| Termination | SMD/SMT |
| Tolerance | 30% |
| Voltage | 12V |
| Voltage Rating | 12V |
| Width | 1.6mm |
| RoHS | Compliant |
Download the complete datasheet for Panasonic EZA-DT62AAAJ to view detailed technical specifications.
