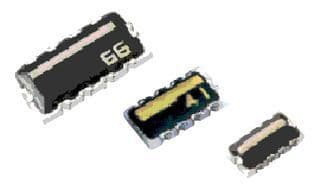

Surface mount RC network for EMI/RFI filtering, featuring 220 Ohm resistance with 5% tolerance and 22pF capacitance. This 4-channel component is housed in a 1608 (4021 metric) SMD case with a 0.8mm terminal pitch. Operating voltage is 25V, with a temperature range of -25°C to 85°C. The construction is flat, with dimensions of 4mm length, 2.1mm depth, and 0.65mm height.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Panasonic EZA-ST41AAAJ datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Capacitance | 22pF |
| Case Code (Imperial) | 1608 |
| Case Code (Metric) | 4021 |
| Package/Case | 1608 |
| Construction | Flat |
| Depth | 2.1mm |
| ESD Protection | No |
| Height | 0.65mm |
| Length | 4mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -25°C |
| Mount | Surface Mount |
| Number of Channels | 4 |
| Number of Contacts | 10 |
| Number of Elements | 4 |
| Package Quantity | 4000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Resistance | 220R |
| Resistance Tolerance | 5% |
| RoHS Compliant | Yes |
| Series | EZAST |
| Terminal Pitch | 0.8mm |
| Thickness | 650um |
| Tolerance | 30% |
| Voltage | 25V |
| Voltage Rating | 25V |
| DC Rated Voltage | 25V |
| RoHS | Compliant |
