Surface mount RC network with 4 channels, 10 contacts, and 4 elements. Features 470 Ohm resistance with 5% tolerance and 22pF capacitance with 30% tolerance. Operates within a temperature range of -25°C to 85°C, with a 25V voltage rating. Packaged in a 1608 (4021 metric) SMD case, measuring 4mm x 2.1mm x 0.65mm, supplied on tape and reel. RoHS compliant.
Package1608
Voltage25V
Capacitance22pF
Resistance470R
Quick Jump:
Technical Specifications
Panasonic EZA-ST51AAAJ technical specifications.
General
| Capacitance | 22pF |
| Case Code (Imperial) | 1608 |
| Case Code (Metric) | 4021 |
| Package/Case | 1608 |
| Construction | Flat |
| Depth | 2.1mm |
| ESD Protection | No |
| Height | 0.65mm |
| Lead Free | Contains Lead |
| Length | 4mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -25°C |
| Mount | Surface Mount |
| Number of Channels | 4 |
| Number of Contacts | 10 |
| Number of Elements | 4 |
| Package Quantity | 4000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Resistance | 470R |
| Resistance Tolerance | 5% |
| RoHS Compliant | Yes |
| Series | EZAST |
| Thickness | 650um |
| Tolerance | 30% |
| Voltage | 25V |
| Voltage Rating | 25V |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic EZA-ST51AAAJ Datasheet
Download the complete datasheet for Panasonic EZA-ST51AAAJ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

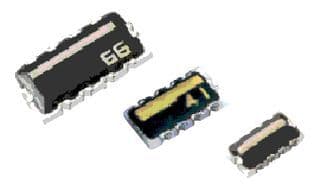

Product Images
