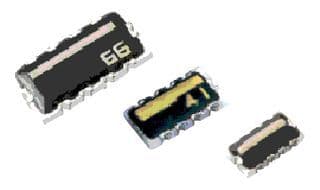

Surface mount RC network for EMI/RFI filtering, featuring 1kΩ resistance with 5% tolerance and 47pF capacitance. This component is housed in a 1608 (4021 metric) SMD package with a flat construction, measuring 4mm in length, 2.1mm in depth, and 0.65mm in height. It operates across a temperature range of -25°C to 85°C, supports a maximum voltage of 25V, and is supplied on tape and reel. The network offers 4 channels and 10 contacts, with a 30% capacitance tolerance.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Panasonic EZA-ST62AAAJ datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Capacitance | 47pF |
| Case Code (Imperial) | 1608 |
| Case Code (Metric) | 4021 |
| Package/Case | 1608 |
| Construction | Flat |
| Depth | 2.1mm |
| ESD Protection | No |
| Height | 0.65mm |
| Lead Free | Contains Lead |
| Length | 4mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -25°C |
| Mount | Surface Mount |
| Number of Channels | 4 |
| Number of Contacts | 10 |
| Number of Elements | 4 |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Resistance | 1kR |
| Resistance Tolerance | 5% |
| RoHS Compliant | Yes |
| Series | EZAST |
| Thickness | 650um |
| Tolerance | 30% |
| Voltage | 25V |
| Width | 0.083inch |
| RoHS | Compliant |
