General purpose plug-in power relay featuring a 12VDC coil with 160 Ohm resistance and 75mA coil current. This 4PDT relay offers a 5A contact current rating with silver/gold contact material and a 250VAC voltage rating. Designed for socket mounting, it operates within a -50°C to 70°C temperature range and boasts 20ms operate and release times. Approvals include UL, CSA, and VDE, with RoHS and Lead Free compliance.
Current Rating5A
MountingSocketable, Socket, Plug-In
Power900mW
Quick Jump:
Technical Specifications
Panasonic HC4-H-DC12V technical specifications.
General
| Approvals | UL, CSA, VDE |
| Coil Current | 75mA |
| Coil Power | 900mW |
| Coil Resistance | 160R |
| Coil Type | Non-Latching |
| Coil Voltage (DC) | 12V |
| Contact Current Rating | 5A |
| Contact Material | Silver, Gold |
| Current Rating | 5A |
| Depth | 20.8mm |
| Height | 35.2mm |
| Lead Free | Lead Free |
| Length | 27.2mm |
| Max Current Rating | 5A |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -50°C |
| Max Voltage Rating (AC) | 250V |
| Mount | Socketable, Socket, Plug-In |
| Mounting Style | SOCKET |
| Operate Time | 20ms |
| Package Quantity | 20 |
| Packaging | Bulk |
| Power Consumption | 900mW |
| Ratings | IP67 |
| Reach SVHC Compliant | Unknown |
| Relay Type | General Purpose |
| Release Time | 20ms |
| RoHS Compliant | Yes |
| Series | HC |
| Switching Current | 5A |
| Termination | Quick Connect |
| Throw Configuration | 4PDT |
| Voltage Rating (AC) | 250V |
| Weight | 30g |
| Width | 20.8mm |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic HC4-H-DC12V Datasheet
Download the complete datasheet for Panasonic HC4-H-DC12V to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

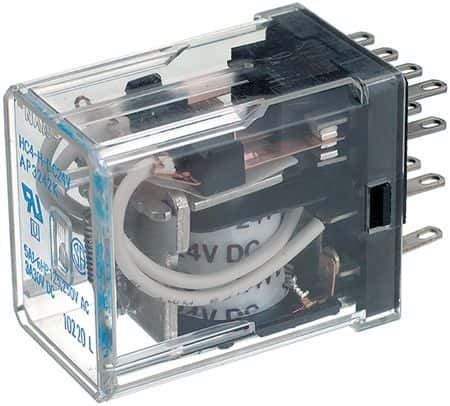

Product Images
