4PDT power relay with a 24VDC coil voltage and 5A contact current rating. Features silver/gold contact material, 250VAC voltage rating, and 900mW coil power. Operates within a -50°C to 70°C temperature range with 20ms operate and release times. Socketable mounting and solder termination. RoHS compliant and IP67 rated.
Current Rating5A
MountingSocketable, Socket, Panel, Plug-In
Power900mW
Quick Jump:
Technical Specifications
Panasonic HC4-H-DC24V technical specifications.
General
| Approvals | UL, CSA, VDE |
| Coil Current | 37mA |
| Coil Power | 900mW |
| Coil Resistance | 650R |
| Coil Type | Non-Latching |
| Coil Voltage (DC) | 24V |
| Contact Current Rating | 5A |
| Contact Material | Silver, Gold |
| Current Rating | 5A |
| Depth | 20.8mm |
| Height | 35.2mm |
| Lead Free | Lead Free |
| Length | 27.2mm |
| Life (Hours) | 2Hour |
| Max Current Rating | 5A |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -50°C |
| Max Voltage Rating (AC) | 250V |
| Mount | Socketable, Socket, Panel, Plug-In |
| Mounting Style | SOCKET |
| Operate Time | 20ms |
| Package Quantity | 20 |
| Packaging | Case |
| Power Consumption | 900mW |
| Radiation Hardening | No |
| Ratings | IP67 |
| Reach SVHC Compliant | Unknown |
| Relay Type | General Purpose |
| Release Time | 20ms |
| RoHS Compliant | Yes |
| Series | HC |
| Switching Current | 5A |
| Termination | Solder |
| Throw Configuration | 4PDT |
| Voltage Rating (AC) | 250V |
| Weight | 30g |
| Width | 20.8mm |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic HC4-H-DC24V Datasheet
Download the complete datasheet for Panasonic HC4-H-DC24V to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

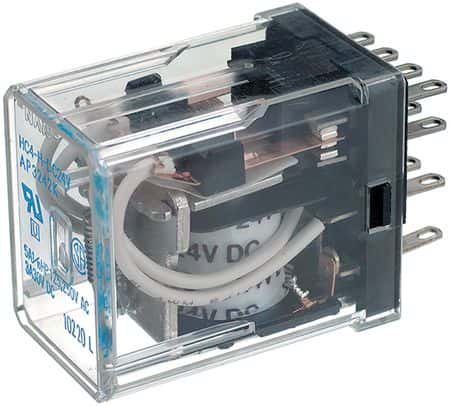

Product Images
