DPDT signal relay with a 4.5VDC coil voltage, 1A contact current rating, and 125VAC/110VDC switching voltage. Features gold/silver contact material and plating, 3ms operate/release times, and a 200,000-hour electrical life. Through-hole mounting with PC pin termination, this RoHS compliant component operates within a -40°C to 70°C temperature range.
PackageDIP
Current Rating1A
MountingThrough Hole, PCB
Power140mW
Quick Jump:
Technical Specifications
Panasonic TQ2-4.5V technical specifications.
General
Approvals
UL, CSA
Package/Case
DIP
Coil Current
31.1mA
Coil Power
140mW
Coil Resistance
144.6R
Coil Type
Non-Latching
Coil Voltage (DC)
4.5V
Contact Current Rating
1A
Contact Material
Gold, Silver
Contact Plating
Gold, Silver
Current Rating
1A
Depth
9mm
Height
5mm
Insertion Loss
0.6dB
Lead Free
Lead Free
Length
14mm
Life (Hours)
200000Hour
Max Current Rating
1A
Max Operating Temperature
70°C
Min Operating Temperature
-40°C
Max Voltage Rating (AC)
125V
Max Voltage Rating (DC)
110V
Mount
Through Hole, PCB
Number of Contacts
2
Number of Poles
2
Operate Time
3ms
Package Quantity
50
Packaging
Rail/Tube
Power Consumption
140mW
Radiation Hardening
No
Reach SVHC Compliant
Unknown
Relay Function
DPDT
Relay Type
Telecom
Release Time
3ms
RoHS Compliant
Yes
Series
TQ
Switching Current
1A
Switching Voltage
125V
Termination
PC Pin
Throw Configuration
DPDT
Voltage Rating (AC)
125V
DC Rated Voltage
110V
Weight
1.5g
Width
9mm
Compliance
RoHS
Compliant
Datasheet
Panasonic TQ2-4.5V Datasheet
Download the complete datasheet for Panasonic TQ2-4.5V to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

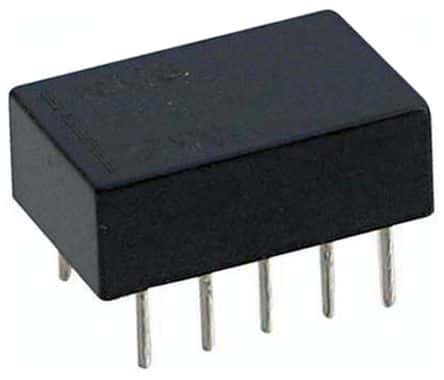

Product Images
