DPDT general purpose electromechanical relay featuring a 5VDC coil with 140mW power consumption and 28.1mA coil current. Offers 1A contact current rating and 110VDC/125VAC switching voltage. Through-hole mounting with PC pin termination, this relay boasts a 3ms operate and release time, and a contact material of gold and silver. Rated for IP67 protection and compliant with ROHS standards.
PackageDIP
Current Rating1A
MountingThrough Hole, PCB
Power140mW
Quick Jump:
Technical Specifications

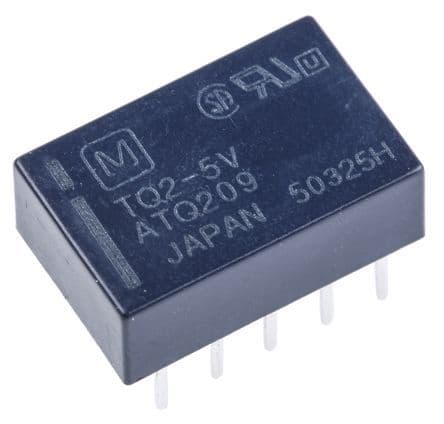

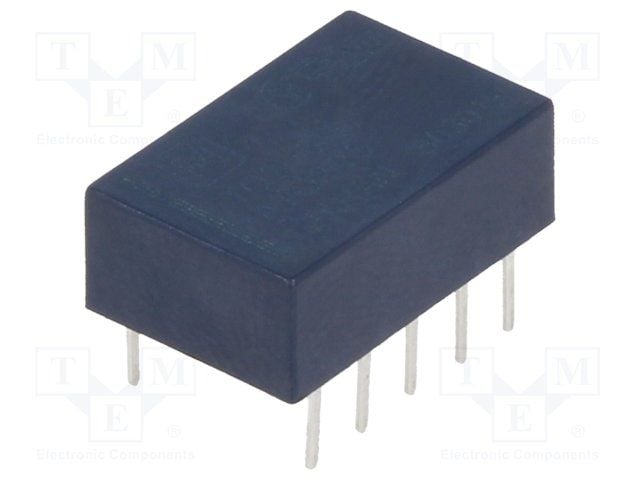

Panasonic TQ2-5V technical specifications.
General
Approvals
UL, CSA
Package/Case
DIP
Coil Current
28.1mA
Coil Power
140mW
Coil Resistance
178R
Coil Type
Non-Latching
Coil Voltage (DC)
5V
Contact Current Rating
1A
Contact Material
Gold, Silver
Current Rating
1A
Depth
9mm
Height
5mm
Insertion Loss
0.6dB
Lead Free
Lead Free
Length
14mm
Life (Hours)
200000Hour
Max Current Rating
1A
Max Operating Temperature
70°C
Min Operating Temperature
-40°C
Max Voltage Rating (AC)
125V
Max Voltage Rating (DC)
110V
Mount
Through Hole, PCB
Number of Contacts
2
Operate Time
3ms
Package Quantity
50
Packaging
Rail/Tube
Power Consumption
140mW
Radiation Hardening
No
Ratings
IP67
Reach SVHC Compliant
Unknown
Relay Type
Telecom
Release Time
3ms
RoHS Compliant
Yes
Series
TQ
Switching Current
1A
Switching Voltage
125V
Termination
PC Pin
Throw Configuration
DPDT
Voltage Rating (AC)
125V
DC Rated Voltage
110V
Weight
1.5g
Width
9mm
Compliance
RoHS
Compliant
