DPDT signal relay with a 12VDC coil voltage and 1A contact current rating. Features gold-plated silver contacts, 2 change-over contact type, and a through-hole PCB mount. Operates within a -40°C to 70°C temperature range with a 3ms operate time and 4ms release time. IP67 rated and RoHS compliant, this relay offers 200,000 hours of mechanical life.
PackageDIP
Current Rating1A
MountingThrough Hole, PCB
Power200mW
Quick Jump:
Technical Specifications
Panasonic TQ2-L2-12V technical specifications.
General
Approvals
UL, CSA
Package/Case
DIP
Coil Current
16.7mA
Coil Power
200mW
Coil Resistance
720R
Coil Type
Latching, Dual Coil
Coil Voltage (DC)
12V
Contact Current Rating
1A
Contact Material
Gold, Silver
Contact Plating
Gold
Contact Type
2 change-overs
Current Rating
1A
Depth
9mm
Fall Time
4ms
Height
5mm
Insertion Loss
0.6dB
Lead Free
Lead Free
Length
14mm
Life (Hours)
200000Hour
Max Current Rating
1A
Max Operating Temperature
70°C
Min Operating Temperature
-40°C
Max Voltage Rating (AC)
125V
Max Voltage Rating (DC)
110V
Mount
Through Hole, PCB
Number of Contacts
2
Operate Time
3ms
Package Quantity
50
Packaging
Rail/Tube
Power Consumption
200mW
Radiation Hardening
No
Ratings
IP67
Reach SVHC Compliant
Unknown
Relay Type
Telecom
Release Time
3ms
Response Time
4ms
RoHS Compliant
Yes
Series
TQ
Switching Current
1A
Switching Voltage
125V
Termination
PC Pin
Throw Configuration
DPDT
Voltage Rating (AC)
125V
DC Rated Voltage
110V
Weight
1.5g
Width
9mm
Compliance
RoHS
Compliant
Datasheet
Panasonic TQ2-L2-12V Datasheet
Download the complete datasheet for Panasonic TQ2-L2-12V to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

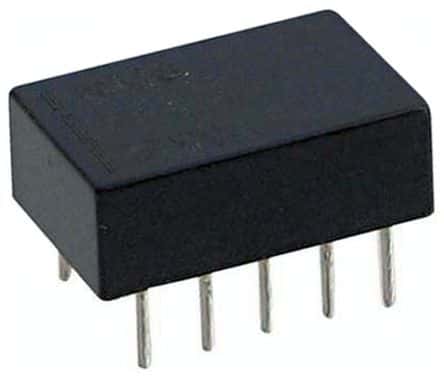

Product Images
