DPDT latching electromechanical relay for general-purpose applications. Features a 12VDC coil with 140mW power consumption and 11.7mA coil current. Offers a 2A contact rating at up to 220VDC and 125VAC, with gold/silver contact material. Surface mount termination with gull wing leads, measuring 14mm (L) x 11.5mm (D) x 5.6mm (H). Operates within -40°C to 85°C, with a mechanical life of 100,000 hours. RoHS compliant and IP67 rated.
Resistance1.028kR
Current Rating2A
MountingSurface Mount, PCB
Power140mW
Quick Jump:
Technical Specifications
Panasonic TQ2SA-L2-12V technical specifications.
General
Approvals
UL, CSA
Coil Current
11.7mA
Coil Power
140mW
Coil Resistance
1.028kR
Coil Type
Latching, Dual Coil
Coil Voltage (DC)
12V
Contact Current Rating
2A
Contact Material
Gold, Silver
Current Rating
2A
Depth
11.5mm
Height
5.6mm
Insertion Loss
0.8dB
Lead Free
Lead Free
Length
14mm
Life (Hours)
100000Hour
Max Current Rating
2A
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Voltage Rating (AC)
125V
Max Voltage Rating (DC)
220V
Mount
Surface Mount, PCB
Operate Time
4ms
Package Quantity
50
Packaging
Rail/Tube
Pitch
2.54mm
Power Consumption
140mW
Ratings
IP67
Reach SVHC Compliant
No
Relay Type
Telecom
Release Time
4ms
Resistance
1.028kR
RoHS Compliant
Yes
Series
TQ-SMD
Switching Current
2A
Switching Voltage
220V
Termination
Gull Wing
Test Voltage
1.5kV
Throw Configuration
DPDT
Voltage Rating (AC)
125V
Weight
2g
Compliance
RoHS
Compliant
Datasheet
Panasonic TQ2SA-L2-12V Datasheet
Download the complete datasheet for Panasonic TQ2SA-L2-12V to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

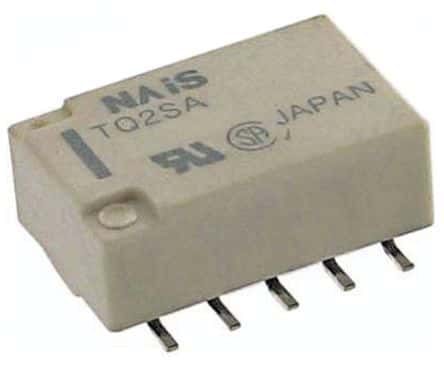

Product Images
