DPDT electromechanical signal relay with a 4.5VDC coil voltage, 31mA coil current, and 140mW coil power. Features a 2A contact current rating with gold/silver contact material and plating. Operates within a -40°C to 85°C temperature range, offering 4ms operate and release times. Through-hole mounting with PC pin termination, suitable for PCB applications.
PackageDIP
Current Rating2A
MountingThrough Hole, PCB
Power140mW
Quick Jump:
Technical Specifications
Panasonic TX2-4.5V technical specifications.
General
Approvals
UL, CSA
Package/Case
DIP
Coil Current
31mA
Coil Power
140mW
Coil Resistance
145R
Coil Type
Non-Latching
Coil Voltage (DC)
4.5V
Contact Current Rating
2A
Contact Material
Gold, Silver
Contact Plating
Gold, Silver
Current Rating
2A
Depth
7.4mm
Height
8.2mm
Insertion Loss
0.8dB
Lead Free
Lead Free
Length
15mm
Life (Hours)
1Hour
Max Current Rating
2A
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Voltage Rating (DC)
220V
Mount
Through Hole, PCB
Number of Poles
2
Operate Time
4ms
Package Quantity
40
Packaging
Rail/Tube
Power Consumption
140mW
Radiation Hardening
No
Reach SVHC Compliant
No
Relay Function
DPDT
Relay Type
Telecom
Release Time
4ms
RoHS Compliant
Yes
Series
TX
Termination
PC Pin
Throw Configuration
DPDT
Type
Electromechanical
DC Rated Voltage
220V
Weight
2g
Width
15mm
Compliance
RoHS
Compliant
Datasheet
Panasonic TX2-4.5V Datasheet
Download the complete datasheet for Panasonic TX2-4.5V to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

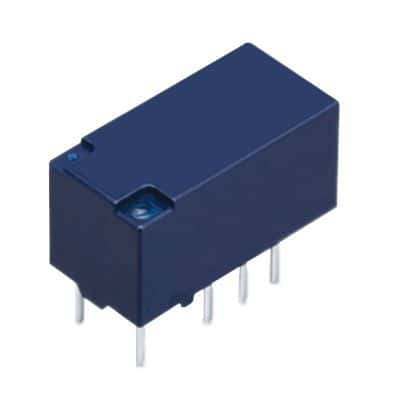

Product Images
