General purpose electromechanical relay featuring a 2 Form C (DPDT) contact configuration. Coil operates at 4.5VDC with 50mW power consumption and 11.1mA current. Contact rating is 1A at 110VDC, with gold/silver contact material and plating. Through-hole, straight mount termination with a DIP package. Operating temperature range from -40°C to 70°C.
PackageDIP
Current Rating1A
MountingThrough Hole, PCB
Power50mW
Quick Jump:
Technical Specifications
Panasonic TXS2-4.5V technical specifications.
General
Approvals
UL, CSA
Package/Case
DIP
Coil Current
11.1mA
Coil Power
50mW
Coil Resistance
405R
Coil Type
Non-Latching
Coil Voltage (DC)
4.5V
Contact Current Rating
1A
Contact Material
Gold, Silver
Contact Plating
Gold, Silver
Current Rating
1A
Depth
7.4mm
Height
8.2mm
Insertion Loss
0.8dB
Lead Free
Lead Free
Length
15mm
Life (Hours)
2Hour
Max Current Rating
1A
Max Operating Temperature
70°C
Min Operating Temperature
-40°C
Max Voltage Rating (DC)
110V
Mount
Through Hole, PCB
Number of Poles
2
Operate Time
5ms
Package Quantity
40
Packaging
Rail/Tube
Power Consumption
50mW
Radiation Hardening
No
Reach SVHC Compliant
No
Relay Type
General Purpose
Release Time
5ms
RoHS Compliant
Yes
Series
TX-S
Termination
PC Pin
Throw Configuration
DPDT
DC Rated Voltage
110V
Weight
2g
Width
15mm
Compliance
RoHS
Compliant
Datasheet
Panasonic TXS2-4.5V Datasheet
Download the complete datasheet for Panasonic TXS2-4.5V to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

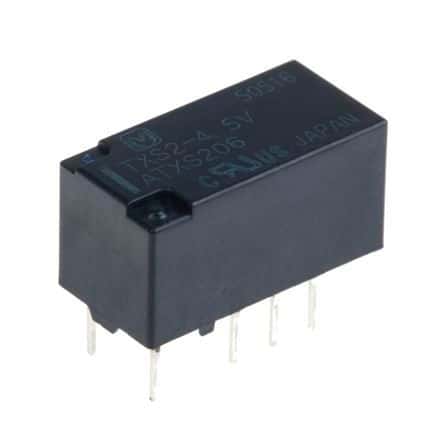

Product Images
