3V Lithium secondary coin cell battery with 100mAh capacity. Features a 30mm diameter and 3.2mm height, designed for surface mount (SMD/SMT) applications. Operates across a temperature range of -20°C to 60°C. Lead-free construction.
Voltage3V
Storage100mAh
Voltage Rating3V
MountingSurface Mount
Quick Jump:
Technical Specifications
Panasonic VL-3032/F2N technical specifications.
General
Battery Chemistry
LITHIUM
Battery Size
3032
Battery Type
SECONDARY
Capacity
100mAh
Chemistry/Technology
Lithium
Depth
30mm
Diameter
30mm
Height
3.2mm
Lead Free
Lead Free
Length
30mm
Max Operating Temperature
60°C
Min Operating Temperature
-20°C
Mount
Surface Mount
Number of Cells
1
Output Voltage
3V
Package Quantity
200
Series
VL3032
Termination
SMD/SMT
Voltage
3V
Voltage Rating
3V
Weight
6.2g
Compliance
RoHS
Compliant
Datasheet
Panasonic VL-3032/F2N Datasheet
Download the complete datasheet for Panasonic VL-3032/F2N to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

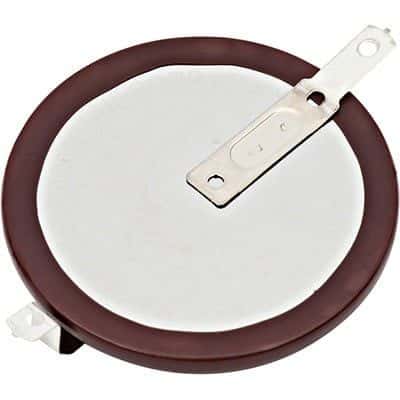

Product Images
