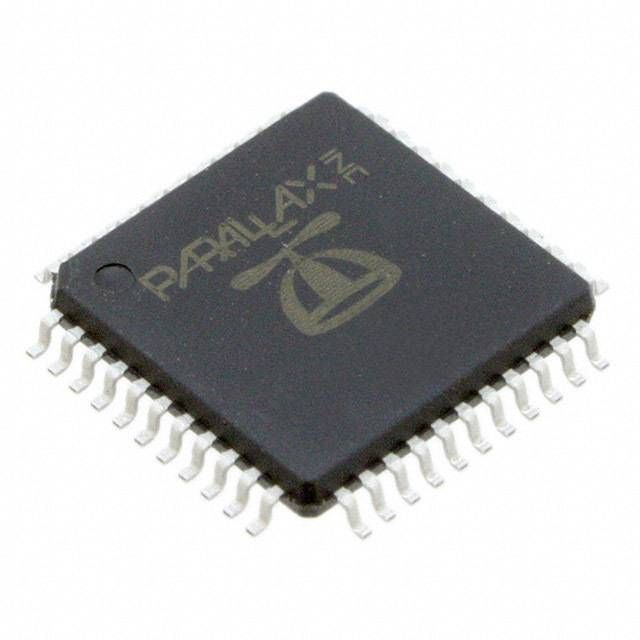

32-bit RISC microcontroller featuring an 80MHz clock speed and 32KB RAM. This surface mount device offers 32 programmable I/O pins and supports USB and I2C interfaces. Operating within a 2.7V to 3.6V supply range, it boasts a wide temperature range from -55°C to 125°C. The LQFP package measures 10mm x 10mm with a height of 1.4mm.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Parallax P8X32A-Q44 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Parallax P8X32A-Q44 technical specifications.
| Access Time | 80us |
| Address Bus Width | 32b |
| Package/Case | LQFP |
| Core Architecture | RISC |
| Data Bus Width | 32b |
| Frequency | 80MHz |
| Height | 1.4mm |
| Interface | USB, I2C |
| Lead Free | Lead Free |
| Length | 10mm |
| Max Frequency | 80MHz |
| Max Operating Temperature | 125°C |
| Max Supply Voltage | 3.6V |
| Memory Size | 32KB |
| Memory Type | EEPROM, , ROM |
| Min Operating Temperature | -55°C |
| Min Supply Voltage | 2.7V |
| Mount | Surface Mount |
| Number of Bits | 32 |
| Number of I/Os | 32 |
| Number of Programmable I/O | 32 |
| Oscillator Type | Internal |
| Package Quantity | 160 |
| Packaging | Tray |
| RAM Size | 32KB |
| Reach SVHC Compliant | No |
| Series | Propeller™ |
| Termination | SMD/SMT |
| Weight | 0.0128oz |
| Width | 10mm |
| RoHS | Compliant |
