Ultralow quiescent current (34µA) positive linear voltage regulator, offering 200mA maximum output current with a 0.7% output voltage accuracy. Features a low dropout voltage of 140mV and a wide input voltage range from 2.9V to 12V. Operates with a nominal supply current of 4mA, supporting output voltages from 2.5V to 5V, with a fixed 3V nominal output. Packaged in a compact SOT-23-6 (1.15mm height, 2.9mm length, 1.6mm width) for surface-mount applications.
PackageSOT-23-6
PolarityPositive
Quick Jump:
Technical Specifications
Analog Devices ADP3330ARTZ-3-RL7 technical specifications.
General
Accuracy
0.7%
Package/Case
SOT-23-6
Dropout Voltage
140mV
Height
1.15mm
Lead Free
Contains Lead
Length
2.9mm
Max Input Voltage
12V
Min Input Voltage
2.9V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
200mA
Max Output Voltage
5V
Min Output Voltage
2.5V
Max Supply Current
4mA
Nominal Output Voltage
3V
Nominal Supply Current
4mA
Number of Outputs
1
Number of Regulators
1
Operating Supply Current
4mA
Output Current
200mA
Output Type
Fixed
Output Voltage
3V
Output Voltage Accuracy
0.7%
Package Quantity
3000
Packaging
Tape and Reel
Polarity
Positive
Power Supply Rejection Ratio (PSRR)
65dB
Quiescent Current
34uA
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
anyCAP®
Width
1.6mm
Compliance
RoHS
Compliant
Datasheet
Analog Devices ADP3330ARTZ-3-RL7 Datasheet
Download the complete datasheet for Analog Devices ADP3330ARTZ-3-RL7 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

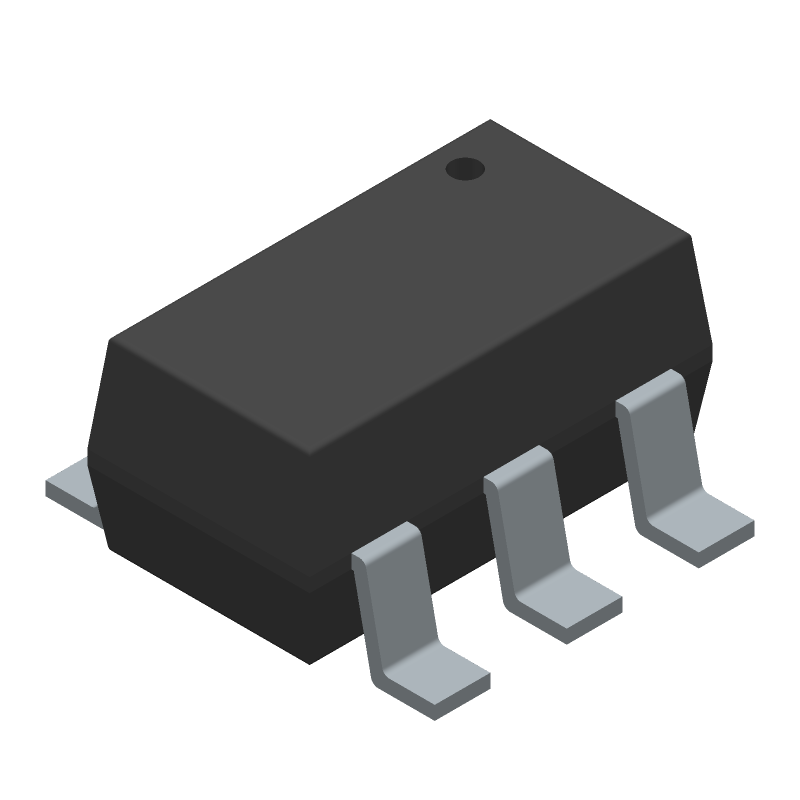

Product Images
