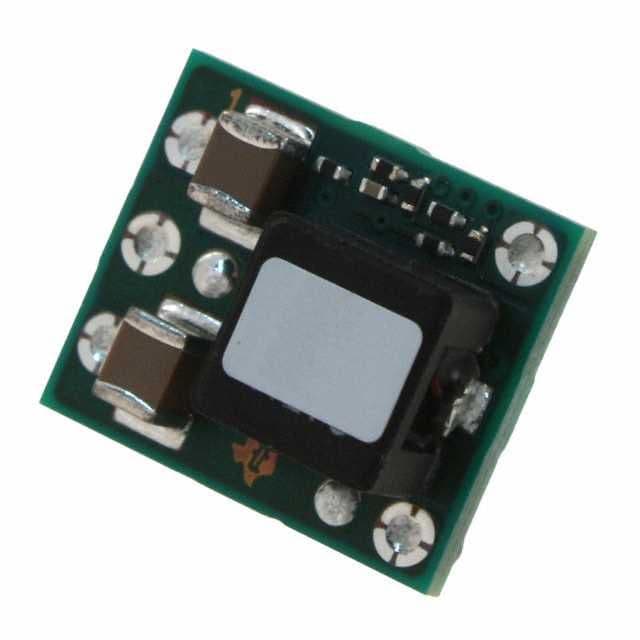

PTH08080WAS

2.25A DC/DC Controller, 4.5-18V In, 5.5V Out, 10W, SMD

Wide adjust miniature power module, 2.25A output current, 10W output power, and 5.5V nominal output voltage. Features a 4.5V to 18V input voltage range and up to 93.5% efficiency. Non-isolated, single output DC/DC controller and regulator in a 5-surface mount module package. Operating temperature range from -40°C to 85°C.

PackageSMD/SMT

Power10W

Quick Jump:

Technical Specifications

Texas Instruments PTH08080WAS technical specifications.

General

Package/Case	SMD/SMT
Current - Output 1	2.25A
Depth	12.7mm
Efficiency	93.5%
Height	0.35inch
Isolation	Non-Isolated
Lead Free	Contains Lead
Length	15.24mm
Max Input Voltage (DC)	18V
Min Input Voltage (DC)	4.5V
Max Input Voltage	18V
Min Input Voltage	4.5V
Max Operating Temperature	85°C
Min Operating Temperature	-40°C
Max Output Current	2.25A
Max Output Power	10W
Max Output Voltage	5.5V
Min Output Voltage	900mV
Max Power Dissipation	12.4W
Nominal Output Voltage	5.5V
Number of Outputs	1
Output Current	2.25A
Output Power	10W
Output Voltage	5.5V
Package Quantity	90
Packaging	Tray
Radiation Hardening	No
Reach SVHC Compliant	No
RoHS Compliant	No
Series	PTH08080W
Voltage - Output 1	5.5V
Width	0.5inch
