Quad voltage output 12-bit DAC with a serial I2C interface. Features a 125 kS/s conversion rate, 8 µs settling time, and 0.7 V/µs slew rate. Operates with a 2.5V to 5.5V supply voltage and provides a unipolar voltage output. Integral nonlinearity is 10 LSB. Packaged in SOP with tin/lead contact plating.
PackageSOP
Power2.5mW
Quick Jump:
Technical Specifications
Analog Devices AD5326BRU technical specifications.
General
Package/Case
SOP
Contact Plating
Tin, Lead
Conversion Rate
125KS/s
Differential Output
No
Integral Nonlinearity (INL)
10LSB
Interface
Serial, I2C
Lead Free
Contains Lead
Max Input Voltage
5.5V
Min Input Voltage
2.5V
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Max Output Voltage
5.5V
Min Output Voltage
2.5V
Max Power Dissipation
2.5mW
Max Supply Voltage
5.5V
Min Supply Voltage
2.5V
Number of Bits
12
Number of Converters
4
Number of D/A Converters
4
Number of DAC Channels
4
Number of Outputs
4
Output Polarity
Unipolar
Output Type
Voltage
Package Quantity
96
Packaging
Rail/Tube
Power Dissipation
2.5mW
Resolution
12b
RoHS Compliant
No
Sampling Rate
125KS/s
Settling Time
8us
Slew Rate
0.7V/µs
Compliance
RoHS
Not Compliant
Datasheet
Analog Devices AD5326BRU Datasheet
Download the complete datasheet for Analog Devices AD5326BRU to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

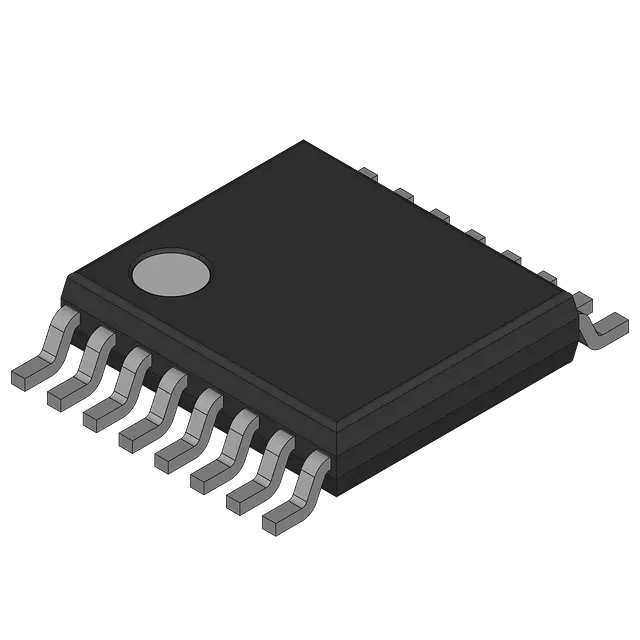

Product Images
