AD534LHZ

4-Bit Analog Multiplier/Divider IC, 1MHz, 0.25% Acc, TO-100

4-bit analog multiplier/divider IC featuring a 1MHz -3dB bandwidth and 0.25% accuracy. This through-hole component operates with dual supply voltages from ±8V to ±18V, offering a maximum output voltage of 11V. It boasts a 20V/µs slew rate and a 2µs settling time, with a maximum power dissipation of 500mW. The TO-100-10 package with gold contact plating ensures reliable performance across an operating temperature range of -55°C to 125°C.

Frequency1MHz

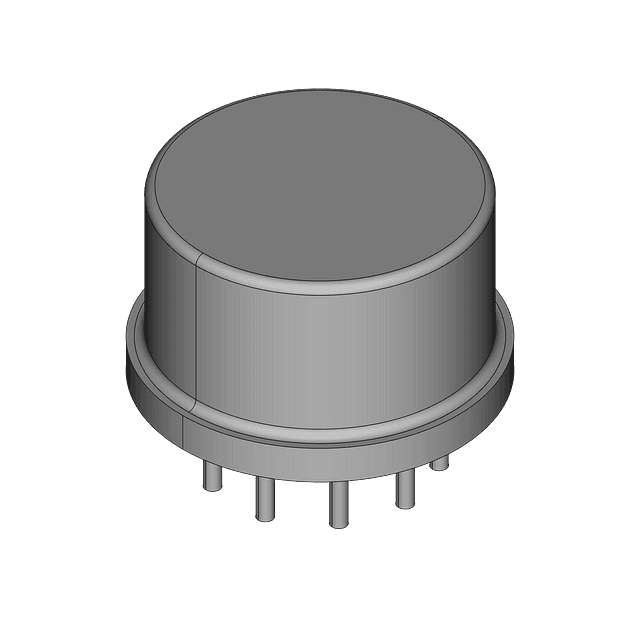

PackageTO-100-10

MountingThrough Hole

Quick Jump:

Technical Specifications

Analog Devices AD534LHZ technical specifications.

General

-3db Bandwidth	1MHz
Accuracy	0.25%
Package/Case	TO-100-10
Contact Plating	Gold
Dual Supply Voltage	15V
Height	4.7mm
Lead Free	Contains Lead
Max Dual Supply Voltage	18V
Min Dual Supply Voltage	8V
Max Frequency	1MHz
Max Input Voltage	10V
Max Operating Temperature	125°C
Min Operating Temperature	-55°C
Max Power Dissipation	500mW
Max Supply Current	6mA
Max Supply Voltage	18V
Min Supply Voltage	8V
Mount	Through Hole
Number of Amplifiers	4
Number of Bits	4
Number of Elements	1
Operating Supply Current	6mA
Output Voltage	11V
Packaging	Rail/Tube
Reach SVHC Compliant	No
RoHS Compliant	Yes
Settling Time	2us
Slew Rate	20V/µs
