Pepperl+Fuchs
NBB2-8GM50-E2
Inductive sensor 2 mm PNP, make contact Cable 2 m, PVC 10. . .30 VDC -25. . .+70 °C, NBB2-8GM50-E2, Pepperl+Fuchs
MountingFlush
Quick Jump:
Technical Specifications
Pepperl+Fuchs NBB2-8GM50-E2 technical specifications.
General
| Body Material | Brass |
| Length | 50mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Flush |
| Operating Supply Voltage | 30V |
| Output Type | PNP |
| Ratings | IP67 |
| Sensing Method | Inductive |
| Shielding | Unshielded |
| Switching Current | 100mA |
| Termination | Cable |
Compliance
| RoHS | Compliant |
Datasheet
Pepperl+Fuchs NBB2-8GM50-E2 Datasheet
Download the complete datasheet for Pepperl+Fuchs NBB2-8GM50-E2 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

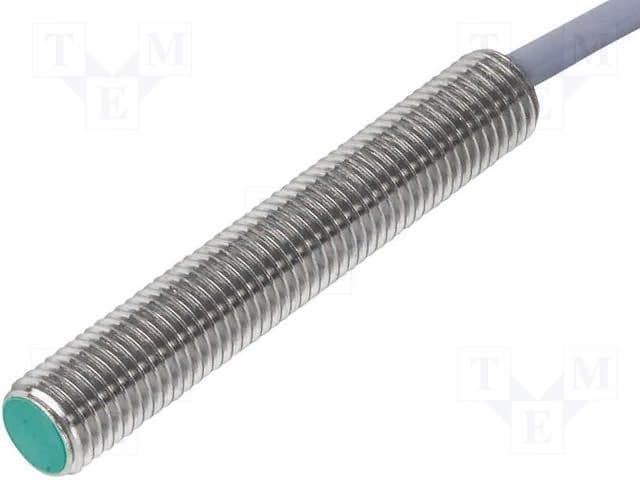

Product Images
