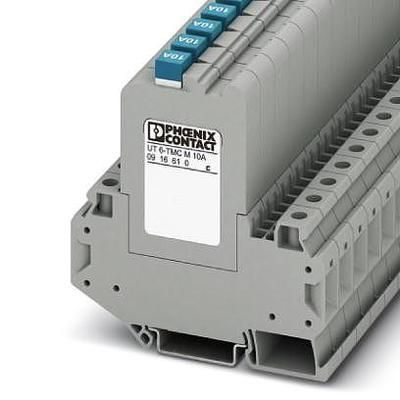

10A, 240V AC, 28V DC thermal magnetic circuit breaker with push-to-reset actuator. Features single pole configuration, screw termination, and DIN rail mounting. Operates within a temperature range of -30°C to 60°C, with UL94 V-0 flammability rating. Approvals include UL, CSA, VDE, KC, and EAC.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Phoenix Contact 0916610 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Actuator Type | Push to Reset |
| Approvals | UL, CSA, VDE, KC, EAC |
| Breaker Type | Thermal Magnetic |
| Color | Grey |
| Current Rating | 10A |
| Depth | 96mm |
| Flammability Rating | UL94 V-0 |
| Height | 85.5mm |
| Lead Free | Lead Free |
| Length | 86mm |
| Max Operating Temperature | 60°C |
| Min Operating Temperature | -30°C |
| Mount | DIN Rail |
| Number of Poles | 1 |
| Packaging | Bulk |
| RoHS Compliant | Yes |
| Termination | Screw |
| Trip Current | 10A |
| Voltage Rating | 240V |
| Voltage Rating (AC) | 240V |
| DC Rated Voltage | 28V |
| Weight | 2.271643oz |
| Width | 12.3mm |
| RoHS | Compliant |
