Phoenix Contact
1457885
Sensor/actuator connector, male, straight, 8-pos., M12, A-coded, screw connection, metal knurl, cable screw connection
Voltage Rating250V
Current Rating4A
MountingThrough Hole, Panel, Bulkhead
Quick Jump:
Technical Specifications
Phoenix Contact 1457885 technical specifications.
General
Contact Plating
Gold
Current Rating
4A
Features
Shielded
Max Operating Temperature
85°C
Min Operating Temperature
-25°C
Mount
Through Hole, Panel, Bulkhead
Number of Positions
4
Packaging
Bulk
Ratings
IP67, Waterproof, Dust Tight
RoHS Compliant
Yes
Series
SACC
Termination
Solder
Voltage Rating
250V
Compliance
RoHS
Compliant
Datasheet
Phoenix Contact 1457885 Datasheet
Download the complete datasheet for Phoenix Contact 1457885 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

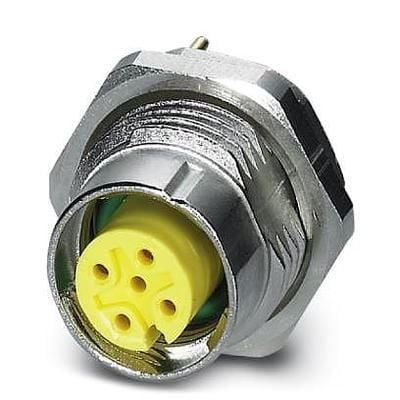

Product Images
