Phoenix Contact
1552188

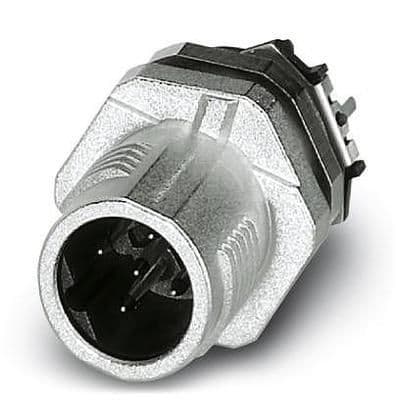

Sensor/actuator flush-type plug, 5-pos., M12 SPEEDCON, B-coded, rear/screw mounting with M12 thread, with straight THR solder connection
Voltage Rating60V
Current Rating4A
MountingThrough Hole, Panel, Bulkhead
Quick Jump:
Technical Specifications
Phoenix Contact 1552188 technical specifications.
General
Contact Plating
Gold
Current Rating
4A
Max Operating Temperature
85°C
Min Operating Temperature
-25°C
Mount
Through Hole, Panel, Bulkhead
Number of Contacts
5
Number of Positions
5
Package Quantity
60
Packaging
Tray
Ratings
IP67, Waterproof, Dust Tight
RoHS Compliant
Yes
Series
PLUSCON
Termination
Solder
Voltage Rating
60V
Compliance
RoHS
Compliant
