Phoenix Contact
2322401
VARIOFACE module, with screw connection and high density D-Subminiature female connector, for mounting on NS 35, no. of pos.: 15, width: 44.9 mm
PackageModule
Voltage Rating125V
Current Rating1A
MountingDIN Rail
Quick Jump:
Technical Specifications
Phoenix Contact 2322401 technical specifications.
General
| Package/Case | Module |
| Color | Green |
| Contact Current Rating | 1A |
| Current Rating | 1A |
| Depth | 45.1mm |
| Gender | Female |
| Height | 45.1mm |
| Lead Free | Lead Free |
| Length | 65.5mm |
| Max Operating Temperature | 50°C |
| Min Operating Temperature | -20°C |
| Mount | DIN Rail |
| Number of Contacts | 15 |
| Number of Positions | 15 |
| Orientation | Straight |
| Package Quantity | 1 |
| Series | VARIOFACE, VIP |
| Termination | Screw |
| Voltage Rating | 125V |
| Width | 44.9mm |
| Wire Gauge (Max) | 24AWG |
| Wire Gauge (Min) | 12AWG |
| Wire/Cable Gauge | 12AWG |
Compliance
| RoHS | Compliant |
Datasheet
Phoenix Contact 2322401 Datasheet
Download the complete datasheet for Phoenix Contact 2322401 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

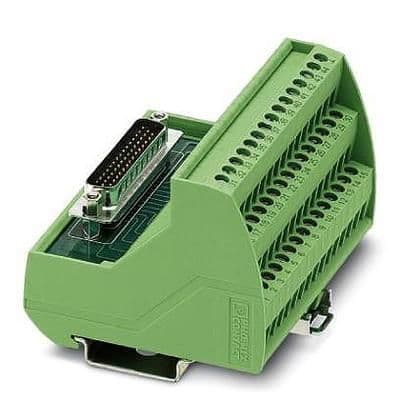

Product Images
