Powerex
CM200DX-24A
Insulated Gate Bipolar Transistor, 200A I(C), 1200V V(BR)CES, N-Channel, MODULE-11
PackageModule
MountingChassis Mount
Quick Jump:
Technical Specifications
Powerex CM200DX-24A technical specifications.
General
Package/Case
Module
Collector Emitter Breakdown Voltage
1.2kV
Collector-emitter Voltage-Max
2.6V
Input
Standard
Input Capacitance
35nF
Max Collector Current
200A
Max Operating Temperature
150°C
Min Operating Temperature
-40°C
Max Power Dissipation
1.25kW
Mount
Chassis Mount
NTC Thermistor
Yes
Packaging
Bulk
RoHS Compliant
No
Series
IGBTMOD™
Compliance
RoHS
Not Compliant
Datasheet
Powerex CM200DX-24A Datasheet
Download the complete datasheet for Powerex CM200DX-24A to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

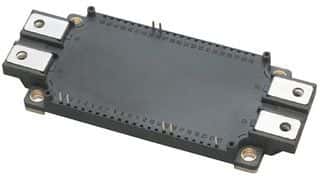

Product Images
