PackageModule
Current Rating600A
MountingChassis Mount
Power2.4kW
Quick Jump:
Technical Specifications
Powerex CM600DY-12NF technical specifications.
General
Package/Case
Module
Collector Emitter Breakdown Voltage
600V
Collector-emitter Voltage-Max
2.2V
Current Rating
600A
Input
Standard
Input Capacitance
90nF
Max Collector Current
600A
Max Operating Temperature
150°C
Min Operating Temperature
-40°C
Max Power Dissipation
1.13kW
Mount
Chassis Mount
NTC Thermistor
No
Packaging
Bulk
Power Dissipation
2.4kW
RoHS Compliant
Yes
Series
IGBTMOD™
DC Rated Voltage
600V
Compliance
RoHS
Compliant
Datasheet
Powerex CM600DY-12NF Datasheet
Download the complete datasheet for Powerex CM600DY-12NF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

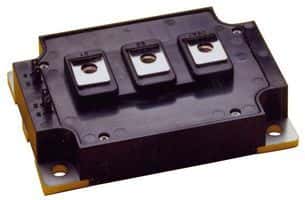

Product Images
