2W carbon linear variable resistor with 5kR resistance and 10% tolerance. Features a single-turn design with a 2-gang configuration for versatile control. Panel mountable with solder terminations, this component offers a 0.249-inch actuator diameter and 0.875-inch actuator length. Its overall dimensions are 28.4mm in diameter and 28.8mm in length, with a lead-free construction.
Resistance5kR
MountingPanel
Quick Jump:
Technical Specifications
Precision Electronic Components KKU5021S28 technical specifications.
General
Actuator Diameter
0.249inch
Actuator Length
0.875inch
Diameter
28.4mm
Lead Free
Lead Free
Length
28.8mm
Max Power Dissipation
2W
Mount
Panel
Number of Gangs
2
Number of Turns
1
Package Quantity
1
Packaging
Bulk
Resistance
5kR
Resistor Type
Carbon
Series
KK
Taper
Linear
Termination
Solder
Tolerance
10%
Compliance
RoHS
Not Compliant
Datasheet
Precision Electronic Components KKU5021S28 Datasheet
Download the complete datasheet for Precision Electronic Components KKU5021S28 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

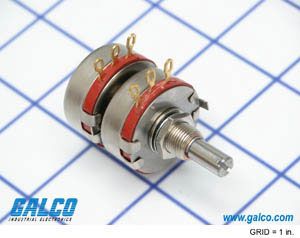

Product Images
