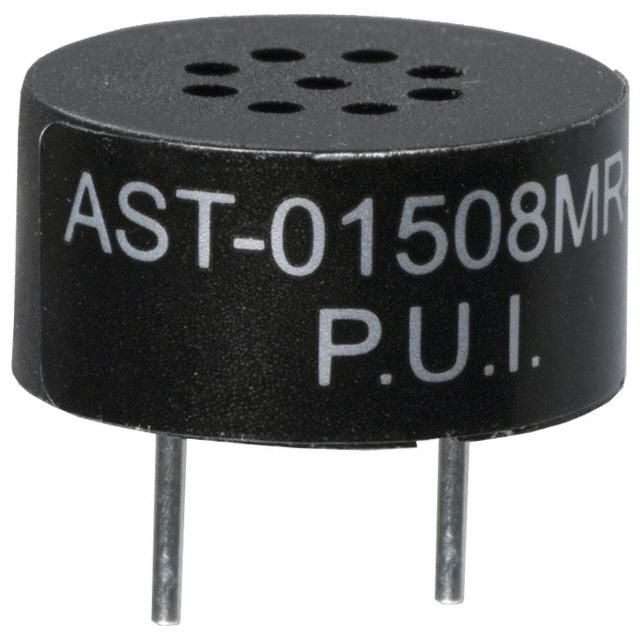

8-ohm, 300mW dynamic speaker with 87dB sensitivity. Features a 15mm diameter, 7.5mm height, and 15mm width. Offers a frequency response of 1.7kHz, with a self-resonant frequency also at 1.7kHz. Designed for through-hole mounting with pin termination. Lead-free construction.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Projects Unlimited AST-01508MR-R datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Diameter | 15mm |
| Frequency | 1.7kHz |
| Height | 7.5mm |
| Impedance | 8R |
| Lead Free | Lead Free |
| Length | 15mm |
| Max Power Dissipation | 500mW |
| Mount | Through Hole |
| Package Quantity | 400 |
| Packaging | Tray |
| Resistance | 8R |
| Self Resonant Frequency | 1.7kHz |
| Series | AST |
| Shape | Round |
| Termination | Pin |
| Type | General Purpose |
| Width | 15mm |
| RoHS | Compliant |
