Enclosed AC/DC power supply featuring a single output with adjustable voltage from 12 to 15 VDC, delivering up to 8A of current and 96W of power. This DIN rail mountable unit offers 500V isolation voltage and operates efficiently at 88.2%. Designed for a wide temperature range from -25°C to 60°C, it boasts a compact form factor with dimensions of 124mm (L) x 32mm (W) x 102mm (D) and a weight of 425g. RoHS compliant for environmental responsibility.
MountingDIN Rail
Quick Jump:
Technical Specifications
Puls CD5.121 technical specifications.
General
Current - Output 1
8A
Depth
102mm
Efficiency
88.2%
Isolation Voltage
500V
Length
124mm
Max Operating Temperature
60°C
Min Operating Temperature
-25°C
Mount
DIN Rail
Nominal Input Voltage
24V
Number of Outputs
1
Output Current
8A
Output Voltage
12V
RoHS Compliant
Yes
Series
DIMENSION-CD
Voltage - Output 1
15V
Weight
425g
Width
32mm
Compliance
RoHS
Compliant
Datasheet
Puls CD5.121 Datasheet
Download the complete datasheet for Puls CD5.121 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

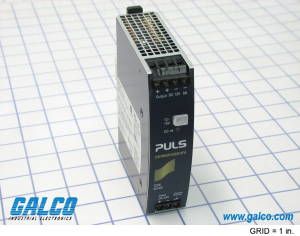

Product Images
