Enclosed AC/DC power supply, 120W output, featuring a single 24-28VDC adjustable output with 5A current capability. This chassis mount unit offers 90.3% efficiency and 500V isolation voltage. Operates across a -25°C to 60°C temperature range. Dimensions are 124mm length, 32mm width, and 102mm depth, with a weight of 425g. Designed for DIN rail mounting.
Package120
MountingDIN Rail
Quick Jump:
Technical Specifications
Puls CD5.241 technical specifications.
General
Package/Case
120
Current - Output 1
5A
Depth
102mm
Efficiency
90.3%
Isolation Voltage
500V
Length
124mm
Max Operating Temperature
60°C
Min Operating Temperature
-25°C
Mount
DIN Rail
Nominal Input Voltage
24V
Number of Outputs
1
Output Current
5A
Output Voltage
24V
Series
DIMENSION-CD
Voltage - Output 1
28V
Weight
425g
Width
32mm
Compliance
RoHS
Compliant
Datasheet
Puls CD5.241 Datasheet
Download the complete datasheet for Puls CD5.241 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

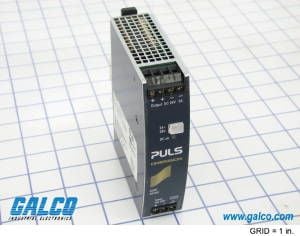

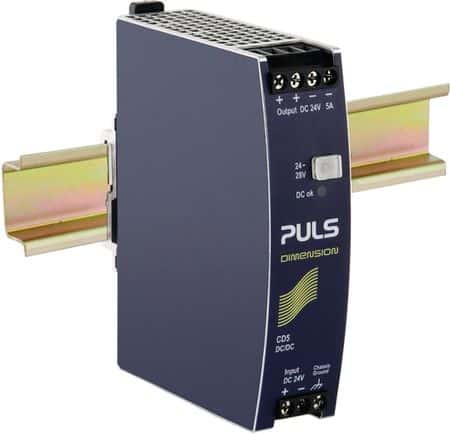

Product Images
