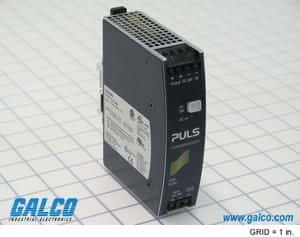

Enclosed AC/DC power supply, 120W output, featuring a single 24V output with adjustable voltage from 23V to 28V and a maximum output current of 5A. This DIN rail mountable unit offers 90.3% efficiency, 500V isolation voltage, and operates across a wide temperature range of -25°C to 60°C. Its compact dimensions are 124mm (L) x 32mm (W) x 102mm (D), with a weight of 425g. RoHS compliant.
Package120
MountingDIN Rail
Quick Jump:
Technical Specifications
Puls CD5.242 technical specifications.
General
Package/Case
120
Current - Output 1
5A
Depth
102mm
Efficiency
90.3%
Isolation Voltage
500V
Length
124mm
Max Operating Temperature
60°C
Min Operating Temperature
-25°C
Mount
DIN Rail
Nominal Input Voltage
48V
Number of Outputs
1
Output Current
5A
Output Voltage
24V
RoHS Compliant
Yes
Series
DIMENSION-CD
Voltage - Output 1
28V
Weight
425g
Width
32mm
Compliance
RoHS
Compliant
Datasheet
Puls CD5.242 Datasheet
Download the complete datasheet for Puls CD5.242 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
