Enclosed AC/DC power supply featuring a 24V output voltage and 4.8A output current. This DIN rail mountable unit offers a single output with adjustable voltage from 24 to 28 VDC. With an efficiency of 87.7%, it operates across a temperature range of -25°C to 70°C. The compact design measures 124mm in length, 32mm in width, and 102mm in depth, weighing 435g.
MountingDIN Rail
Quick Jump:
Technical Specifications
Puls CD5.243 technical specifications.
General
Current - Output 1
4A
Depth
102mm
Efficiency
87.7%
Length
124mm
Max Operating Temperature
70°C
Min Operating Temperature
-25°C
Mount
DIN Rail
Nominal Input Voltage
12V
Number of Outputs
1
Output Current
4.8A
Output Voltage
24V
Series
DIMENSION-CD
Voltage - Output 1
28V
Weight
435g
Width
32mm
Compliance
RoHS
Compliant
Datasheet
Puls CD5.243 Datasheet
Download the complete datasheet for Puls CD5.243 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

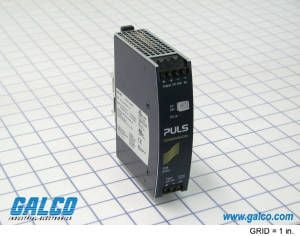

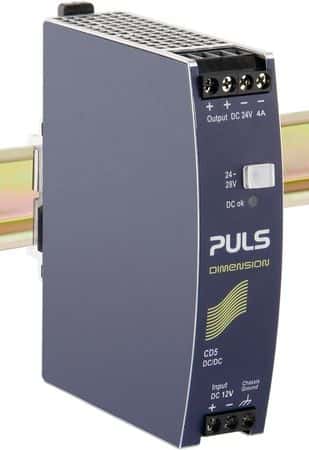

Product Images
