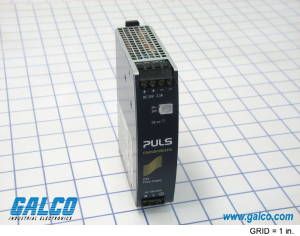

DIN rail mount switched-mode power supply unit delivering 24VDC at 3.3A (80W). Features a wide input voltage range of 100-240VAC and an efficiency of 89.8%. Operates reliably across an extended temperature range from -25°C to 70°C. Compact dimensions of 102mm (L) x 32mm (W) x 124mm (D) and a weight of 430g. RoHS compliant.
MountingPanel
Quick Jump:
Technical Specifications
Puls CS3.241 technical specifications.
General
Current - Output 1
3.3A
Depth
124mm
Efficiency
89.8%
Length
102mm
Max Input Voltage
240V
Min Input Voltage
100V
Max Operating Temperature
70°C
Min Operating Temperature
-25°C
Max Output Voltage
28V
Min Output Voltage
24V
Mount
Panel
Output Current
3.3A
Output Voltage
24V
RoHS Compliant
Yes
Voltage - Output 1
28V
Weight
430g
Width
32mm
Compliance
RoHS
Compliant
Datasheet
Puls CS3.241 Datasheet
Download the complete datasheet for Puls CS3.241 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
