DIN rail-mountable switched-mode power supply unit delivering 24 VDC at 5A output current. Features a wide input voltage range of 100-240 VAC and a robust 120W power capacity. Achieves 90.2% efficiency with an operating temperature range from -25°C to 70°C. Compact dimensions of 117mm (L) x 32mm (W) x 124mm (D) and a weight of 500g.
Package120
MountingDIN Rail
Quick Jump:
Technical Specifications
Puls CS5.241 technical specifications.
General
Package/Case
120
Current - Output 1
5A
Depth
124mm
Efficiency
90.2%
Length
117mm
Max Input Voltage
240V
Min Input Voltage
100V
Max Operating Temperature
70°C
Min Operating Temperature
-25°C
Max Output Voltage
28V
Min Output Voltage
24V
Mount
DIN Rail
Output Current
5A
Voltage - Output 1
28V
Weight
500g
Width
32mm
Compliance
RoHS
Compliant
Datasheet
Puls CS5.241 Datasheet
Download the complete datasheet for Puls CS5.241 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

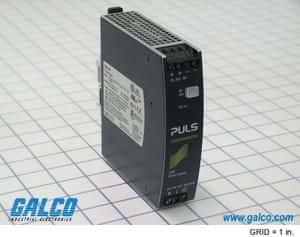

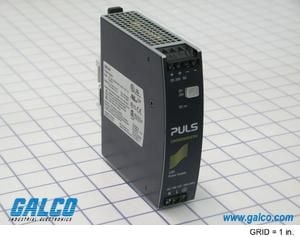

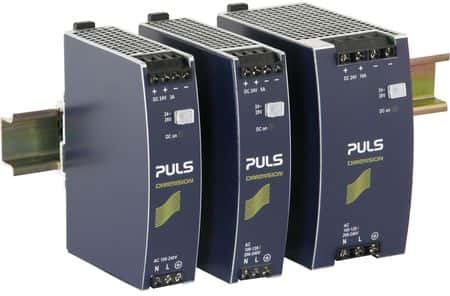

Product Images
