General purpose switched-mode power supply delivering 100W of power. Features a 24 VDC output with adjustable voltage from 24V to 28V and a maximum output current of 4.2A. Operates efficiently at 89.5% with a wide input voltage range of 380VAC to 480VAC. Designed for DIN rail mounting, this compact unit measures 103mm x 72.5mm x 75mm and weighs 360g, suitable for ambient temperatures between -10°C and 70°C.
Package100
MountingDIN Rail
Quick Jump:
Technical Specifications
Puls ML100.200 technical specifications.
General
Package/Case
100
Current - Output 1
4.2A
Depth
75mm
Efficiency
89.5%
Length
103mm
Max Input Voltage
480V
Min Input Voltage
380V
Max Operating Temperature
70°C
Min Operating Temperature
-10°C
Max Output Voltage
28V
Min Output Voltage
24V
Mount
DIN Rail
Output Current
4.2A
Voltage - Output 1
28V
Weight
360g
Width
72.5mm
Compliance
RoHS
Compliant
Datasheet
Puls ML100.200 Datasheet
Download the complete datasheet for Puls ML100.200 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

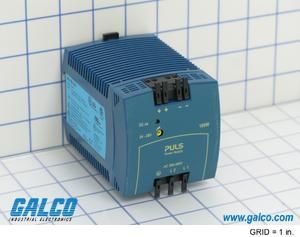

Product Images
