General purpose switched-mode power supply, delivering 24VDC at 630mA (15W) with adjustable output voltage from 24V to 28V. Features wide input voltage range (100-240VAC), 86.1% efficiency, and operates from -10°C to 70°C. Compact 22.5mm width with DIN rail mounting, weighing 130g. RoHS compliant.
MountingDIN Rail
Quick Jump:
Technical Specifications
Puls ML15.241 technical specifications.
General
Current - Output 1
630mA
Depth
75mm
Efficiency
86.1%
Length
91mm
Max Input Voltage
240V
Min Input Voltage
100V
Max Operating Temperature
70°C
Min Operating Temperature
-10°C
Max Output Voltage
28V
Min Output Voltage
24V
Mount
DIN Rail
Output Current
630mA
Output Voltage
24V
RoHS Compliant
Yes
Voltage - Output 1
28V
Weight
130g
Width
22.5mm
Compliance
RoHS
Compliant
Datasheet
Puls ML15.241 Datasheet
Download the complete datasheet for Puls ML15.241 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

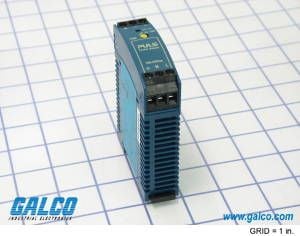

Product Images
