General purpose switched-mode power supply, delivering 24 VDC at 1.1A output current. Features a wide input voltage range of 100-240 VAC, with a maximum output voltage of 28V and efficiency up to 87.5%. Operates reliably between -10°C and 70°C. Designed for DIN rail mounting, this compact unit measures 91mm x 45mm x 75mm and weighs 230g.
Package100
MountingDIN Rail
Quick Jump:
Technical Specifications
Puls ML30.100 technical specifications.
General
Package/Case
100
Current - Output 1
1.3A
Depth
75mm
Efficiency
87.5%
Length
91mm
Max Input Voltage
240V
Min Input Voltage
100V
Max Operating Temperature
70°C
Min Operating Temperature
-10°C
Max Output Voltage
28V
Min Output Voltage
24V
Mount
DIN Rail
Output Current
1.1A
Voltage - Output 1
28V
Weight
230g
Width
45mm
Compliance
RoHS
Not Compliant
Datasheet
Puls ML30.100 Datasheet
Download the complete datasheet for Puls ML30.100 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

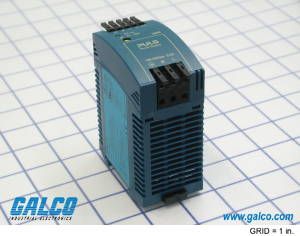

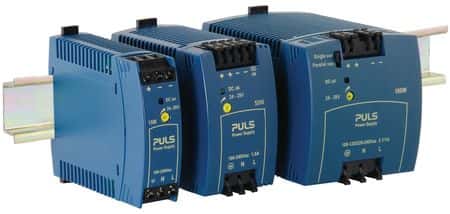

Product Images
