General purpose switched-mode power supply module, delivering 24 VDC at 1.1A (1.3A peak) and 30W maximum output power. Features a wide input voltage range of 100-240 VAC, achieving 89.4% efficiency. Operates reliably from -10°C to 70°C with a compact 91mm x 22.5mm x 75mm module package. Designed for panel mounting and is RoHS compliant.
PackageModule
MountingPanel
Quick Jump:
Technical Specifications
Puls ML30.241 technical specifications.
General
Package/Case
Module
Current - Output 1
1.3A
Depth
75mm
Efficiency
89.4%
Length
91mm
Max Input Voltage
240V
Min Input Voltage
100V
Max Operating Temperature
70°C
Min Operating Temperature
-10°C
Max Output Voltage
28V
Min Output Voltage
24V
Mount
Panel
Output Current
1.1A
RoHS Compliant
Yes
Voltage - Output 1
28V
Weight
140g
Width
22.5mm
Compliance
RoHS
Compliant
Datasheet
Puls ML30.241 Datasheet
Download the complete datasheet for Puls ML30.241 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

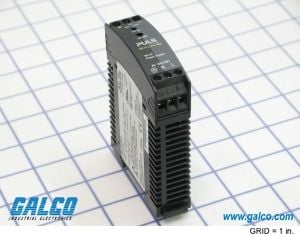

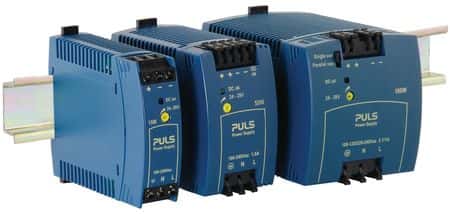

Product Images
