General purpose switched-mode power supply offering 12V to 15V adjustable DC output voltage with a maximum output current of 4.5A and 54W power. Features a wide input voltage range of 100V to 240V AC and an efficiency of 87.2%. Designed for DIN rail mounting, this compact unit measures 91mm x 45mm x 75mm and operates reliably between -10°C and 70°C.
MountingDIN Rail
Quick Jump:
Technical Specifications
Puls ML60.121 technical specifications.
General
Current - Output 1
4.5A
Depth
75mm
Efficiency
87.2%
Length
91mm
Max Input Voltage
240V
Min Input Voltage
100V
Max Operating Temperature
70°C
Min Operating Temperature
-10°C
Max Output Voltage
15V
Min Output Voltage
12V
Mount
DIN Rail
Output Current
4.5A
Voltage - Output 1
15V
Weight
250g
Width
45mm
Compliance
RoHS
Compliant
Datasheet
Puls ML60.121 Datasheet
Download the complete datasheet for Puls ML60.121 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

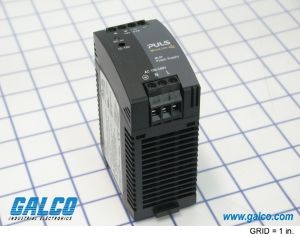

Product Images
