Switch mode power supply, 10A output current, 24V dc to 28V dc adjustable output voltage. Features 93.5% efficiency, 100V to 240V AC input voltage range, and operates from -25°C to 70°C. DIN rail mountable module with dimensions of 117mm length, 60mm width, and 124mm depth. RoHS compliant.
PackageModule
MountingDIN Rail
Quick Jump:
Technical Specifications
Puls QS10.241 technical specifications.
General
Package/Case
Module
Depth
124mm
Efficiency
93.5%
Length
117mm
Max Input Voltage
240V
Min Input Voltage
100V
Max Operating Temperature
70°C
Min Operating Temperature
-25°C
Max Output Voltage
28V
Min Output Voltage
24V
Mount
DIN Rail
Output Current
10A
RoHS Compliant
Yes
Series
Q
Voltage - Output 1
28V
Weight
900g
Width
60mm
Compliance
RoHS
Compliant
Datasheet
Puls QS10.241 Datasheet
Download the complete datasheet for Puls QS10.241 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

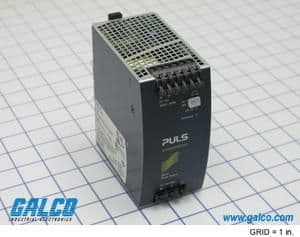

Product Images
