Switch mode power supply, 3A output current, delivering 24V dc to 28V dc with a 3.4A maximum output. Features 90% efficiency and a wide input voltage range of 100V to 240V. Operates across an extended temperature range from -25°C to 70°C. Designed for DIN rail mounting, this compact unit measures 102mm in length, 32mm in width, and 124mm in depth, weighing 440g.
MountingDIN Rail
Quick Jump:
Technical Specifications
Puls QS3.241 technical specifications.
General
Current - Output 1
3.4A
Depth
124mm
Efficiency
90%
Length
102mm
Max Input Voltage
240V
Min Input Voltage
100V
Max Operating Temperature
70°C
Min Operating Temperature
-25°C
Max Output Voltage
28V
Min Output Voltage
24V
Mount
DIN Rail
Output Current
3A
Series
Q
Voltage - Output 1
28V
Weight
440g
Width
32mm
Compliance
RoHS
Compliant
Datasheet
Puls QS3.241 Datasheet
Download the complete datasheet for Puls QS3.241 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

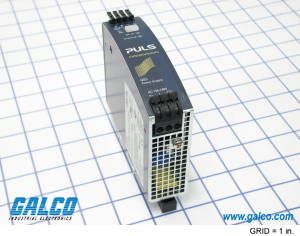

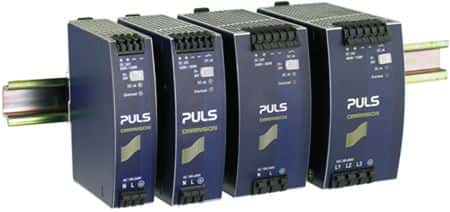

Product Images
