General purpose DIN rail mount power supply, switch mode, delivering 40A output current. Features adjustable output voltage from 24V dc to 28V dc. Operates with input voltages ranging from 200V to 240V ac, boasting 94.6% efficiency. Designed for panel mounting with dimensions of 127mm (length) x 125mm (width) x 124mm (depth). Extended operating temperature range from -25°C to 70°C. RoHS compliant.
Package200
MountingPanel
Quick Jump:
Technical Specifications
Puls QS40.244 technical specifications.
General
Package/Case
200
Current - Output 1
40A
Depth
124mm
Efficiency
94.6%
Length
127mm
Max Input Voltage
240V
Min Input Voltage
200V
Max Operating Temperature
70°C
Min Operating Temperature
-25°C
Max Output Voltage
28V
Min Output Voltage
24V
Mount
Panel
Output Current
40A
RoHS Compliant
Yes
Series
Q
Voltage - Output 1
28V
Weight
1800g
Width
125mm
Compliance
RoHS
Compliant
Datasheet
Puls QS40.244 Datasheet
Download the complete datasheet for Puls QS40.244 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

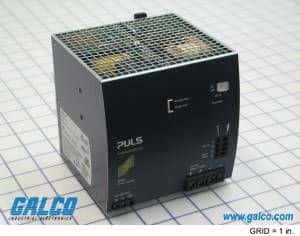

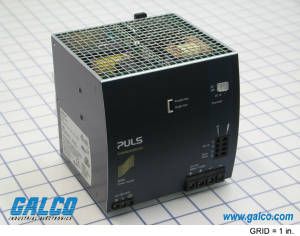

Product Images
