High-efficiency, 960W switched-mode power supply featuring a 48VDC output and 20A current capability. This single-output unit operates across a wide input voltage range of 100-240VAC and offers adjustable output voltage from 48V to 54V. Designed for robust performance, it maintains efficiency up to 95% and operates reliably within a temperature range of -25°C to 70°C. Its compact dimensions (125mm L x 127mm W x 124mm D) and 1.9kg weight, coupled with DIN rail mounting, ensure easy integration. RoHS compliant for environmental responsibility.
MountingDIN Rail
Quick Jump:
Technical Specifications
Puls QS40.481 technical specifications.
General
Depth
124mm
Efficiency
95%
Length
125mm
Max Input Voltage
240V
Min Input Voltage
100V
Max Operating Temperature
70°C
Min Operating Temperature
-25°C
Max Output Voltage
54V
Min Output Voltage
48V
Mount
DIN Rail
Number of Outputs
1
Output Current
20A
RoHS Compliant
Yes
Series
Q
Voltage - Output 1
54V
Weight
1.9kg
Width
127mm
Compliance
RoHS
Compliant
Datasheet
Puls QS40.481 Datasheet
Download the complete datasheet for Puls QS40.481 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

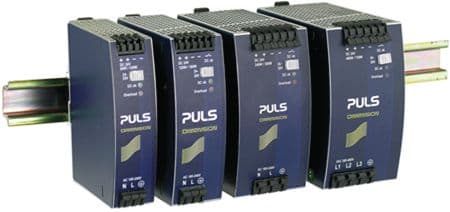

Product Images
