Switch mode power supply, 5A output current, adjustable output voltage from 24V dc to 28V dc. Features 92.7% efficiency, 100V to 240V AC input voltage range, and a wide operating temperature of -25°C to 70°C. DIN rail mountable with dimensions of 117mm (L) x 40mm (W) x 124mm (D). RoHS compliant.
Package120
MountingDIN Rail
Quick Jump:
Technical Specifications
Puls QS5.241 technical specifications.
General
Package/Case
120
Current - Output 1
5A
Depth
124mm
Efficiency
92.7%
Length
117mm
Max Input Voltage
240V
Min Input Voltage
100V
Max Operating Temperature
70°C
Min Operating Temperature
-25°C
Max Output Voltage
28V
Min Output Voltage
24V
Mount
DIN Rail
Output Current
5A
RoHS Compliant
Yes
Series
Q
Voltage - Output 1
28V
Weight
620g
Width
40mm
Compliance
RoHS
Compliant
Datasheet
Puls QS5.241 Datasheet
Download the complete datasheet for Puls QS5.241 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

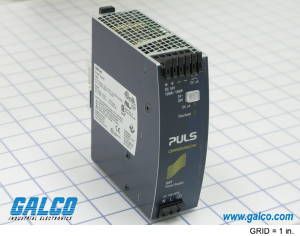

Product Images
