Pulse
FIS115NL
Current Transformer 1:100 4000Vrms 2Ohm Sec. DCR 25000mA Prim. 5 Terminal PC Pin Thru-Hole
Frequency500 kHz
Current Rating25A
MountingThrough Hole
Inductance18mH
Quick Jump:
Technical Specifications
Pulse FIS115NL technical specifications.
General
Current Rating
25A
DC Resistance (DCR)
2R
Depth
15mm
Height
12mm
Height - Seated (Max)
12mm
Inductance
18mH
Lead/Base Style
PC Pin
Length
17.6mm
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Mount
Through Hole
Operating Frequency
500 kHz
Package Quantity
30
Packaging
Tray
Radiation Hardening
No
RoHS Compliant
Yes
Series
FIS 1X5
Termination
PC Pin
Transformer Type
CURRENT SENSE TRANSFORMER
Turns Ratio
1:100
Width
15mm
Compliance
RoHS
Compliant
Datasheet
Pulse FIS115NL Datasheet
Download the complete datasheet for Pulse FIS115NL to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

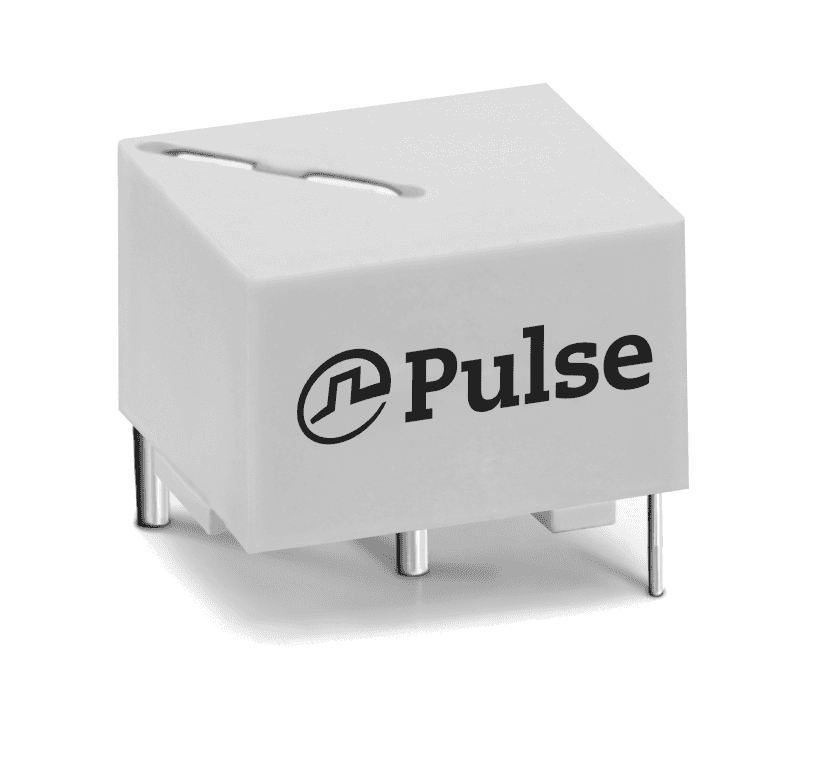

Product Images
