Pulse
H0013NL
Datacom Transformer, LAN; 10/100 BASE-TX; ETHERNET Application(s), 1:1; 1:1, ROHS COMPLIANT
PackageModule
MountingSurface Mount
Quick Jump:
Technical Specifications
Pulse H0013NL technical specifications.
General
Package/Case
Module
Depth
9.65mm
Height
1.98mm
Height - Seated (Max)
1.98mm
Insertion Loss
-0.9dB
Isolation Voltage
1.5kV
Lead/Base Style
Gull Wing
Length
12.7mm
Max Operating Temperature
70°C
Min Operating Temperature
0°C
Mount
Surface Mount
Package Quantity
40
Packaging
Rail/Tube
Radiation Hardening
No
Return Loss
-11dB
RoHS Compliant
Yes
Shielding
Unshielded
Termination
SMD/SMT
Turns Ratio
1:1
Width
7.11mm
Compliance
RoHS
Compliant
Datasheet
Pulse H0013NL Datasheet
Download the complete datasheet for Pulse H0013NL to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

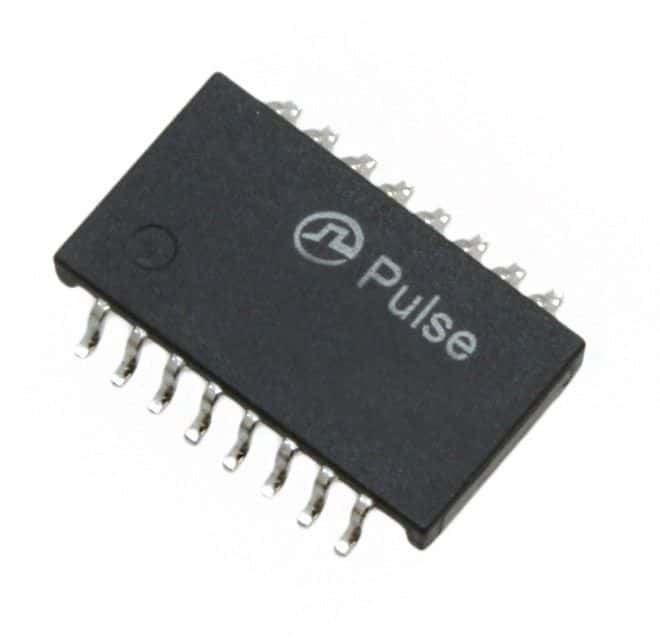

Product Images
